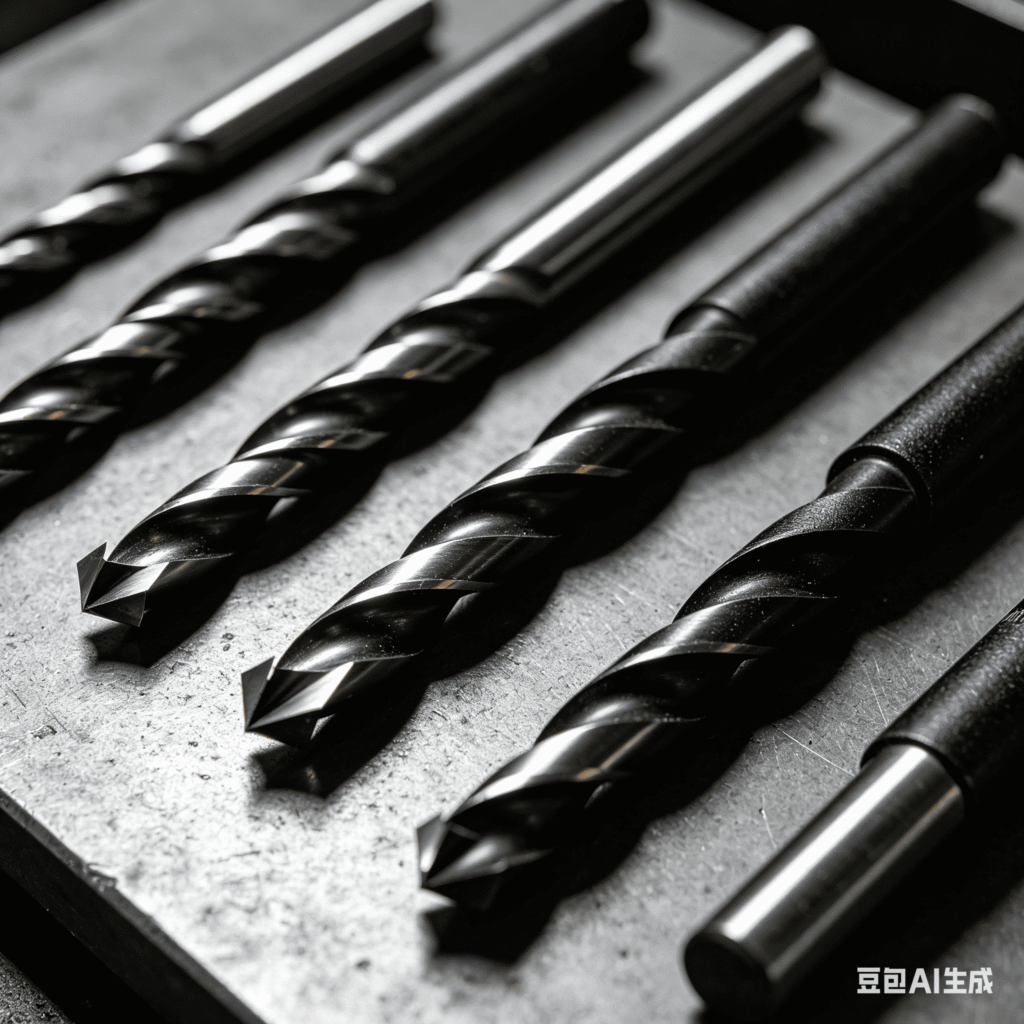

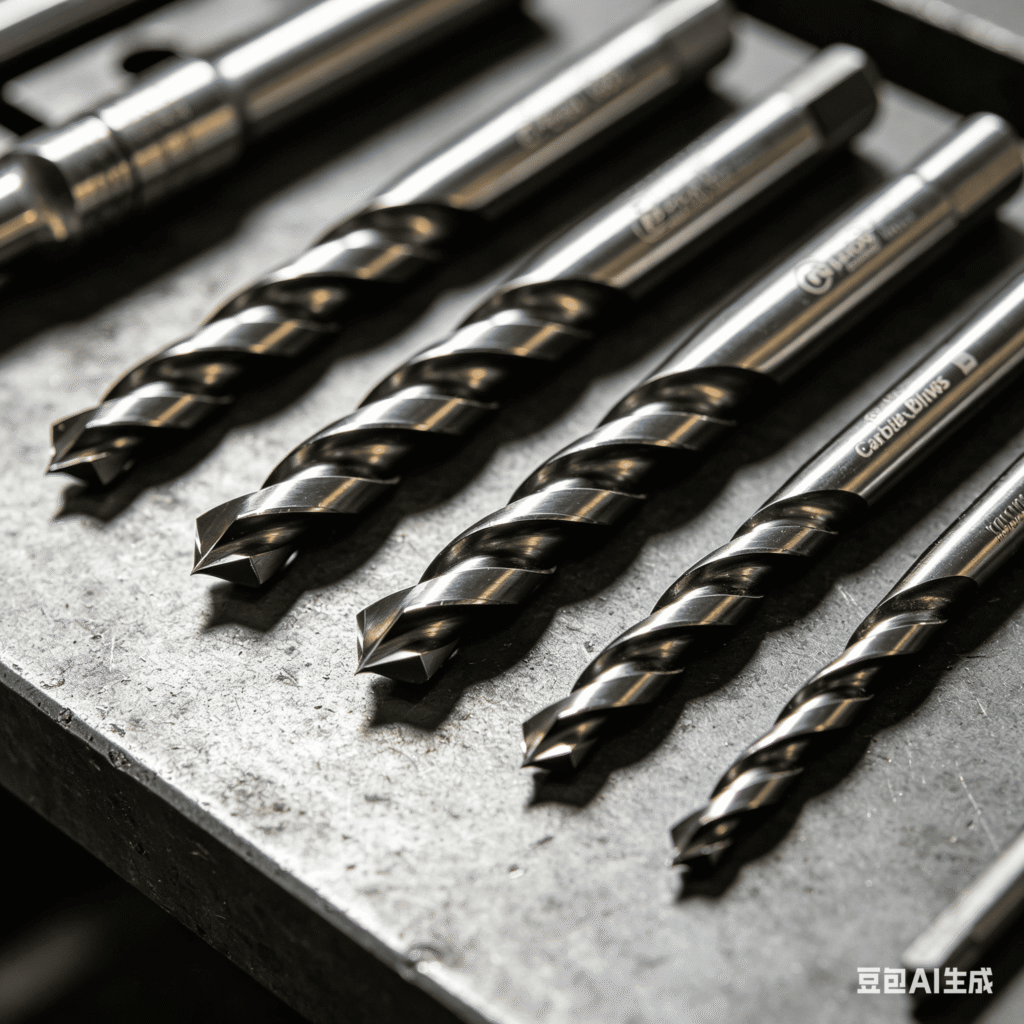

Solid Carbide Twist Drills
Model: CTD-2F-SS/ CTD-2F-AL/ CTD-2F-AS/ CTD-2F-HS/ CTD-2F-GM
Solid carbide twist drills designed for precision hole machining in stainless steel, alloy steel, and general engineering materials. Suitable for through-hole and blind-hole drilling operations with stable dimensional accuracy and consistent cutting performance.
Technical Specifications
| Tool Material | Solid Carbide |
| Diameter Range | 0.5 mm – 20 mm |
| Flute Length | Customized according to drilling depth requirements |
| Overall Length | 38 mm – 200 mm |
| Point Angle Options | 118° /135° /140° /Customized point geometry available |
| Helix Angle | 25° – 35° |
| Coolant Type | External coolant/ Internal coolant (optional) |
| Coating Options | TiAlN /AlTiN /TiSiN /Nano coating /DLC coating (for aluminum machining) |
| Cutting Direction | Right-hand cutting |
| Shank Type | Straight shank /Cylindrical shank /Customized shank configuration available |
| Tolerance Standard | DIN / ISO standard or custom specification |
Suitable Materials
Stainless Steel
Alloy Steel
Carbon Steel
Cast Iron
Aluminum Alloy
Customization
This product supports yes. Send us your drawing or sample reference for technical evaluation.
