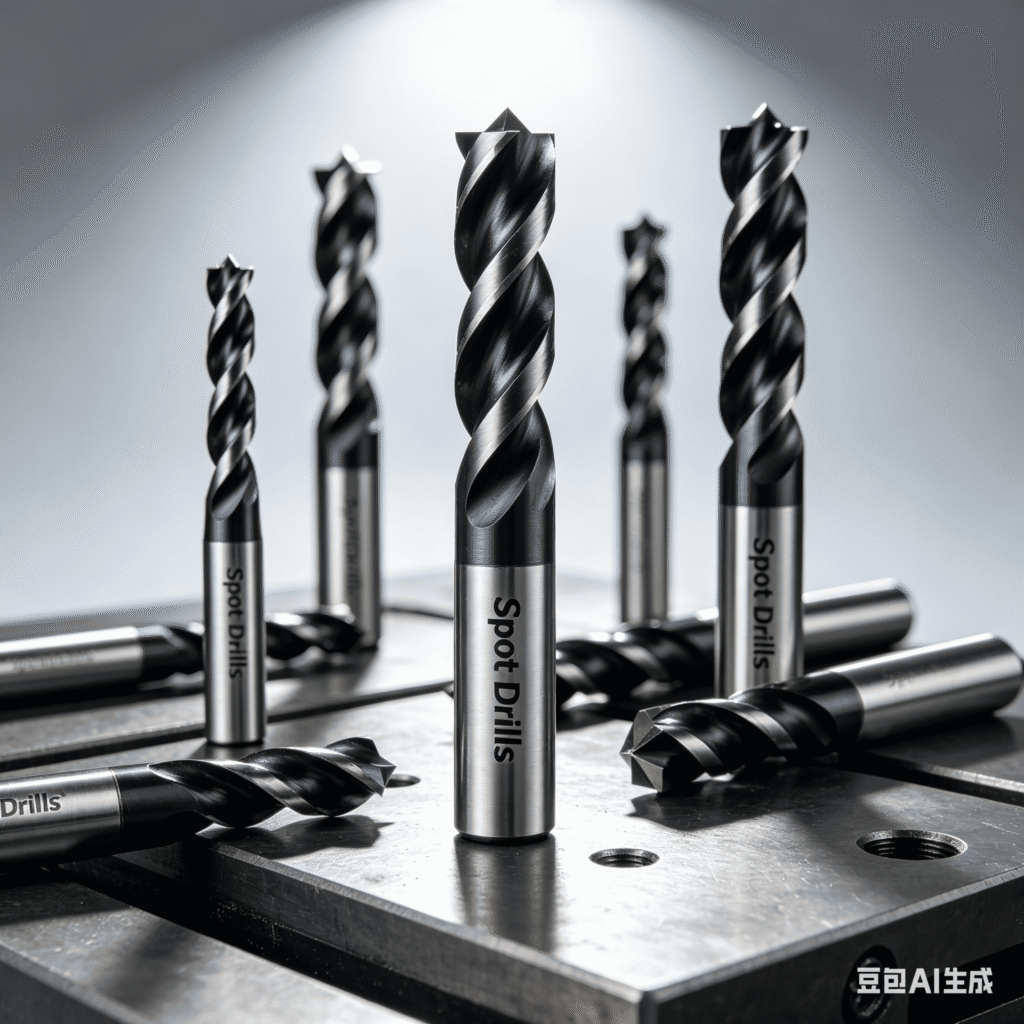

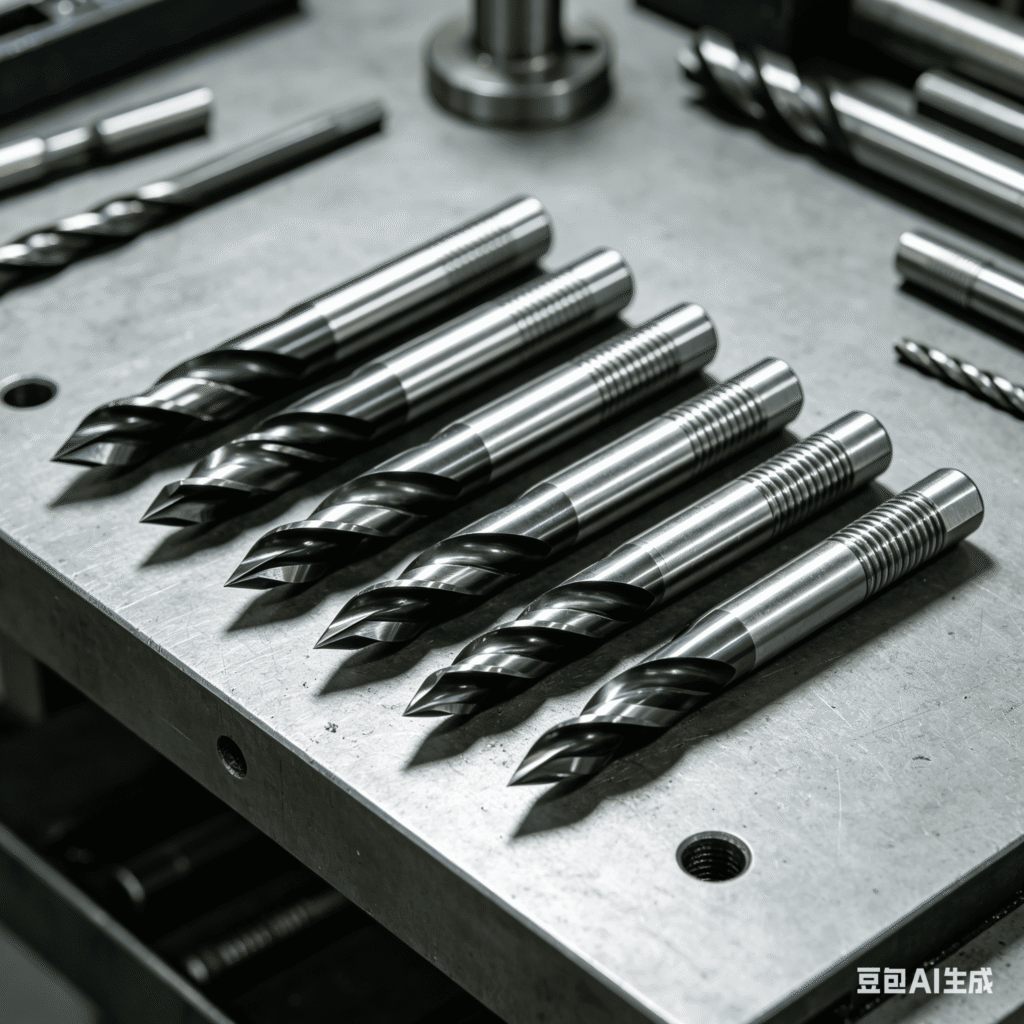

Solid Carbide Spot Drills
Model: SPD-2F-SS /SPD-2F-AL /SPD-2F-AS /SPD-2F-GM
Solid carbide spot drills designed for accurate hole positioning prior to drilling operations. Suitable for improving drilling stability and reducing drill walking in CNC machining processes. Applicable for center positioning and chamfering operations on various engineering materials.
Technical Specifications
| Tool Material | Solid Carbide |
| Diameter Range | 1 mm – 16 mm |
| Flute Number | 2F |
| Point Angle Options | 90° /120° /140° /Customized point angle available |
| Flute Length | Customized according to application requirements |
| Overall Length | 38 mm – 100 mm |
| Helix Angle | 15° – 30° |
| Coating Options | TiAlN /AlTiN /TiSiN /Uncoated (for aluminum machining applications) |
| Cutting Direction | Right-hand cutting |
| Shank Type | Straight shank /Cylindrical shank /Custom shank configuration available |
| Tolerance Standard | DIN / ISO standard or custom specification |
Suitable Materials
Stainless Steel
Alloy Steel
Carbon Steel
Cast Iron
Aluminum Alloy
Customization
This product supports yes. Send us your drawing or sample reference for technical evaluation.
Request Custom Quote
