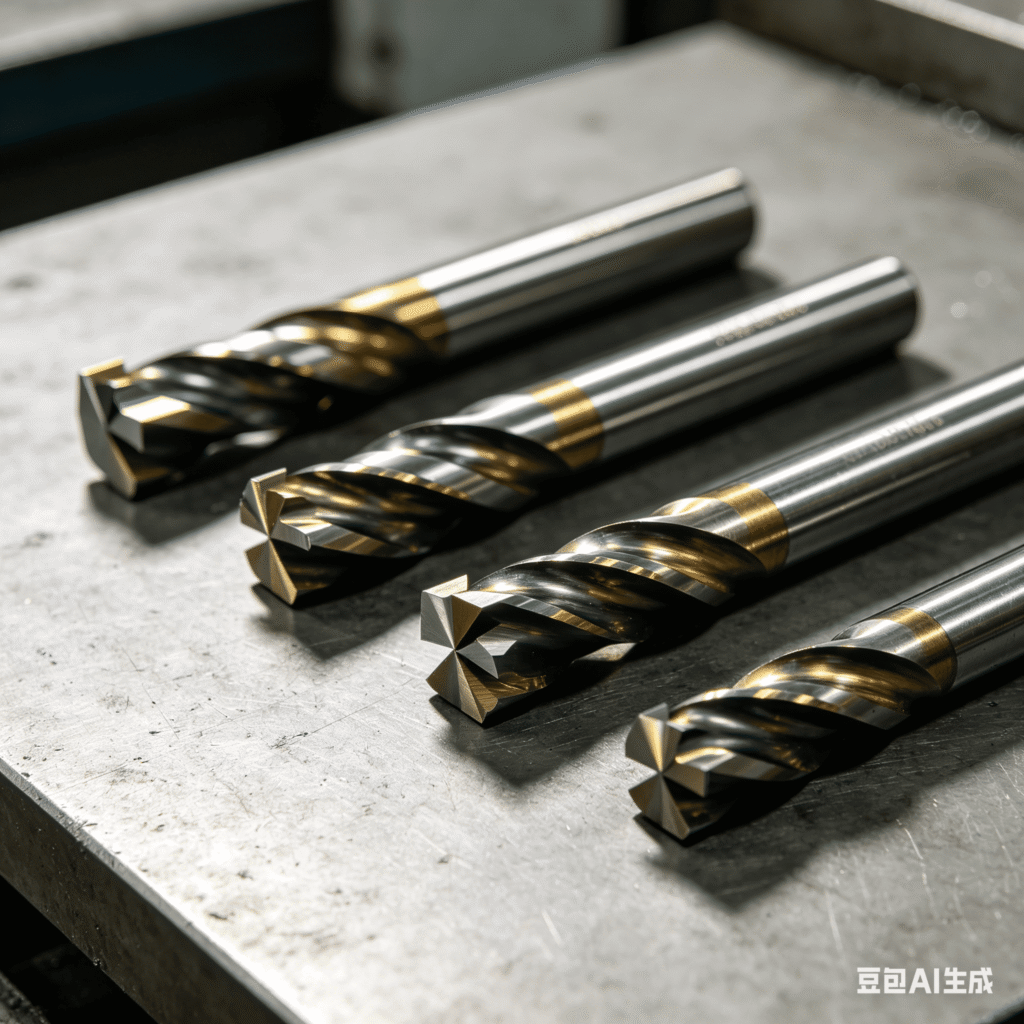

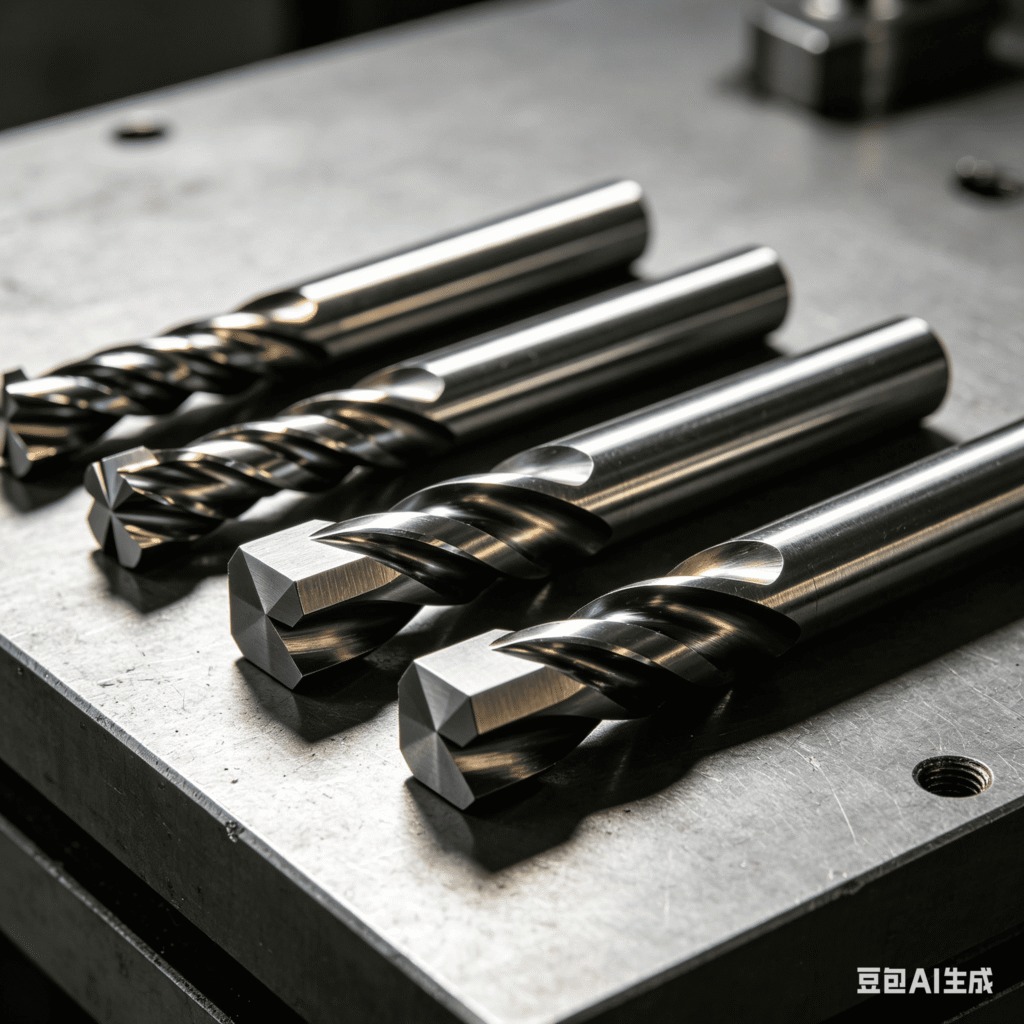

Carbide Square End Mill
Carbide Square End Mills
Model: SEM-2F / SEM-3F / SEM-4F / SEM-Variable Helix Series
Square end mills are solid carbide cutting tools designed for slot milling, side milling, and profile machining operations. The flat cutting edge geometry supports stable cutting performance in general machining and precision finishing applications. Tool geometry and coating options can be adjusted according to workpiece materials and machining conditions.
Technical Specifications
| Tool Material | Solid Carbide |
| Diameter Range | 1 mm – 20 mm |
| Flute Length | Customized according to machining requirements |
| Overall Length | Standard and extended length available |
| Number of Flutes | 2 Flutes /3 Flutes /4 Flutes /Variable Flutes available |
| Helix Angle | 35° /38° /45° /Variable helix optional |
| Coating Options | TiAlN /AlTiN /TiSiN /Uncoated (for aluminum machining) |
| Cutting Direction | Right-hand cutting |
| Shank Type | Straight shank |
| Tolerance | According to customer specification or ISO standard |
Suitable Materials
Stainless Steel
Alloy Steel
Carbon Steel
Cast Iron
Aluminum Alloy
Applications
Array
Customization
This product supports yes. Send us your drawing or sample reference for technical evaluation.
